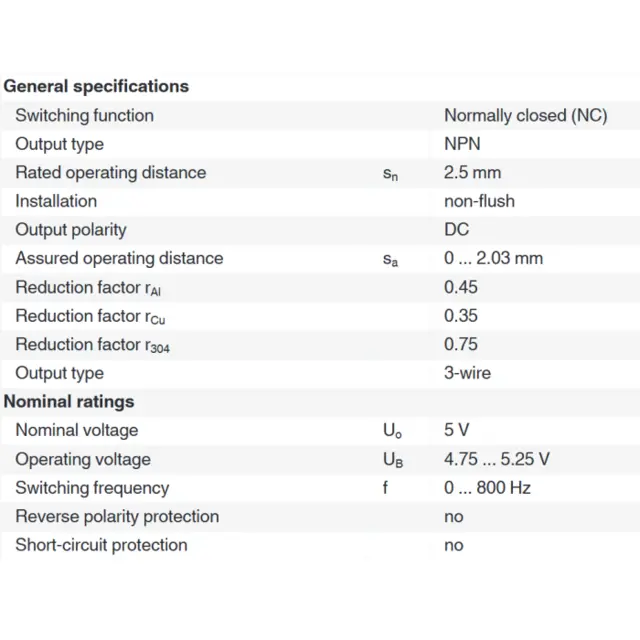

Nominal ratings:

- Nominal voltage Uo 5 V
- Operating voltage UB 4.75 ... 5.25 V
- Switching frequency f 0 ... 800 Hz
- Reverse polarity protection no
- Short-circuit protection no

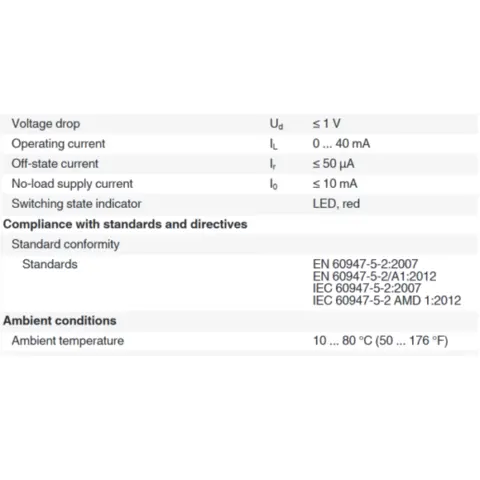

- Voltage drop Ud = 1 V
- Operating current IL 0 ... 40 mA
- Off-state current Ir = 50 µA
- No-load supply current I0 = 10 mA
- Switching state indicator LED, red

Compliance with standards and directives:

- Standard conformity
- Standards EN 60947-5-2:2007EN 60947-5-2/A1:2012IEC 60947-5-2:2007IEC 60947-5-2 AMD 1:2012

Ambient conditions:

- Ambient temperature 10 ... 80 °C (50 ... 176 °F)

Mechanical specifications:
- Connection type cable
- Housing material brass, nickel-plated
- Sensing face LCP, black
- Degree of protection IP65
- Cable
- Cable diameter 3.5 mm ± 0.1 mm
- Material PVC
- Color black
- Core cross-section 0.14 mm2

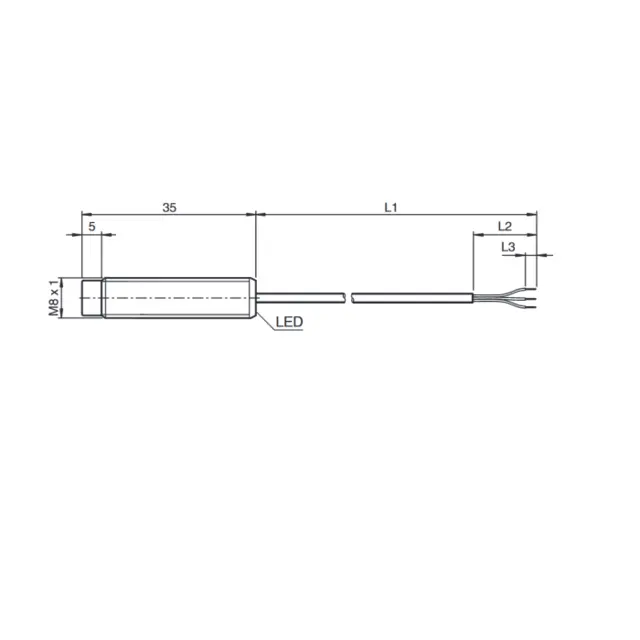

-Length L
L1 = 2 m ± 25 mm
L2 = 50 mm ± 2 mm
L3 = 5 mm
(stripped and tinned)
