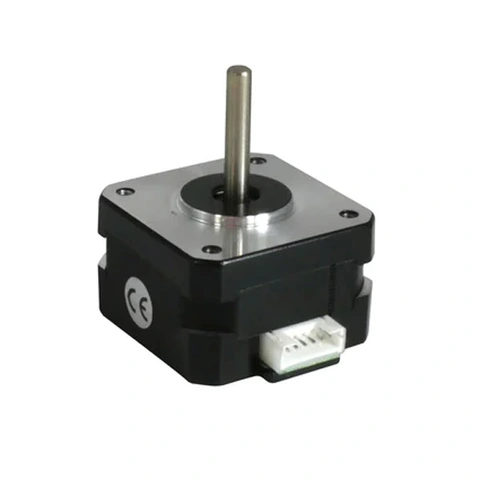

A Nema17 12.7N-cm stepper motor with D-shaft and 1.0m wiring.
Ultra-Slim NEMA17 Stepper Motors for use with your Titan extruder. Only 25mm body length, producing 12.7N-cm of torque these motors make an excellent choice for use on your extruder.
These motors have been custom made for use with our Titan and Titan Aero extruders, striking the perfect balance of size, weight, torque and shaft. They arrive supplied with a pluggable cable 1000mm in length.
This motor weighs 162g on its own and 190g with the supplied cable.
| Manufacturer | E3D |
| Holding Torque | 1.295 kg-cm |
| Shaft | 26mm |
| D Shaft | 24mm |
| Rated Voltage | 2.7v |
| Rated Current | 1.4 A/phase |
| Stepping Angle | 0.9° |
| Lead Length | 1000mm |
| Body Length | 25mm |
